Screw Press
Under the strict command of our accomplished employees, we are offering an innovative collection of Friction Screw Press. The Friction Screw Press offered by us are manufactured keeping in mind the exact requirements of customers. Superior quality material that is sourced from well-known vendors of market is used in the production process. A team of experts examine these products on variegated parameters of quality, before the final delivery. We have been providing quality machines to our clients at the most reasonable prices.

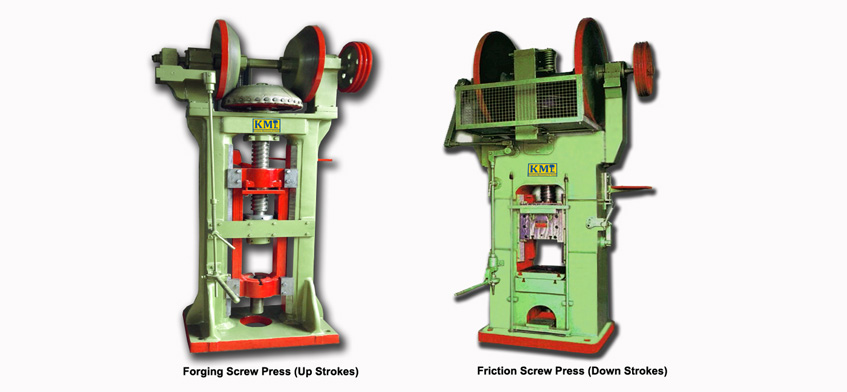

Specification For Friction Screw Press (Down Stroke)
|
Capacity |
30 TON |
50 TON |
100 TON |
150 TON |
|
Dia of Screw |
90mm |
110mm |
137mm |
152mm |
|
Base od M/C |
965 x 685mm |
1015 x 686mm |
1245 x 813mm |
1295 x 965mm |
|
Centre Dist. Of foundation bolt |
737 x 533mm |
838 x 560mm |
965 x 610mm |
1168 x 787mm |
|
Bed Size |
406 x 355mm |
381 x 406mm |
533 x 533mm |
559 x 559mm |
|
Bore size in bed plate |
76mm |
89mm |
127mm |
140mm |
|
Max dist. B/w table & ram |
330mm |
355mm |
559mm |
585mm |
|
Stroke of ram |
178mm |
203mm |
330mm |
355mm |
|
Bore in ram |
38mm |
38mm |
50mm |
63mm |
|
No. of stroke per minute |
35 |
30 |
25 |
20 |
|
Power Required in HP |
3 |
5 |
10 |
15 |
|
Capacity |
200 TON |
300 TON |
400 TON |
500 TON |
|
Dia of Screw |
165mm |
203mm |
241mm |
270mm |
|
Base od M/C |
1524 x 1016mm |
1727 x 1168mm |
1930 x 1371m |
2083 x 1270mm |
|
Centre Dist. Of foundation bolt |
1245 x 838mm |
1397 x 965mm |
1600 x 1041mm |
1778 x 1016mm |
|
Bed Size |
635 x 584mm |
711 x 635mm |
812 x 736mm |
813 x 762mm |
|
Bore size in bed plate |
152mm |
165mm |
178mm |
190mm |
|
Max dist. B/w table & ram |
610mm |
660mm |
711mm |
762mm |
|
Stroke of ram |
381mm |
406mm |
458mm |
458mm |
|
Bore in ram |
75mm |
89mm |
101mm |
114mm |
|
No. of stroke per minute |
15 |
12 |
10 |
8 |
|
Power Required in HP |
20 |
25 |
30 |
50 |
Specification For Forging Screw Press (Up Stroke)
|
MODEL |
KMT-50 US |
KMT-100 US |
KMT-125 US |
KMT-150 US |
|
Capacity |
50 Ton |
100 Ton |
125 Ton |
150 Ton |
|
Gap B-w slide & Block in |
355mm |
500mm |
550mm |
625mm |
|
Dia of Screw |
90mm |
100mm |
115mm |
127mm |
|
Piece s/Hour |
800-1200 |
700-1000 |
600-900 |
500-700 |
|
M/C length |
2120mm |
2485mm |
2745 |
3125mm |
|
Side table |
228mm |
230mm |
240 |
273mm |
|
Max diameter bolt capable |
12 dia 22/10 |
20 dia 40/20 |
22 dia 35/18 |
35 dia 60/28 |
|
Stroke length |
254mm |
350mm |
430 |
482mm |
|
Base of machine |
760 x 510mm |
920 x 600mm |
965 x 660 |
1120 x 800mm |
|
Centre of foundation bolt |
665 x 370mm |
830 x 510mm |
840 x 540 |
1000 x 650mm |
|
Power hp |
5 |
7.5 |
10 |
20 |
|
MODEL |
KMT-200 US |
KMT-350 US |
KMT-400 US |
|
|
Capacity |
200 Ton |
350 Ton |
400 Ton |
|
|
Gap B-w slide & Block in |
675mm |
800mm |
1000mm |
|
|
Dia of Screw |
152mm |
178mm |
197mm |
|
|
Piece s/Hour |
400-600 |
350-600 |
300-450 |
|
|
M/C length |
3556mm |
4040mm |
4775mm |
|
|
Side table |
292mm |
317mm |
350mm |
|
|
Max diameter bolt capable |
45 dia 75/35 |
60 dia 90/50 |
90 dia 135/65 |
|
|
Stroke length |
508mm |
610mm |
762mm |
|
|
Base of machine |
1250 x 940mm |
1370 x 1040mm |
1700 x 1200mm |
|
|
Centre of foundation bolt |
1092 x 940mm |
1250 x 850mm |
1500 x 1000mm |
|
|
Power Hp |
25 |
30 |
50 |
|
