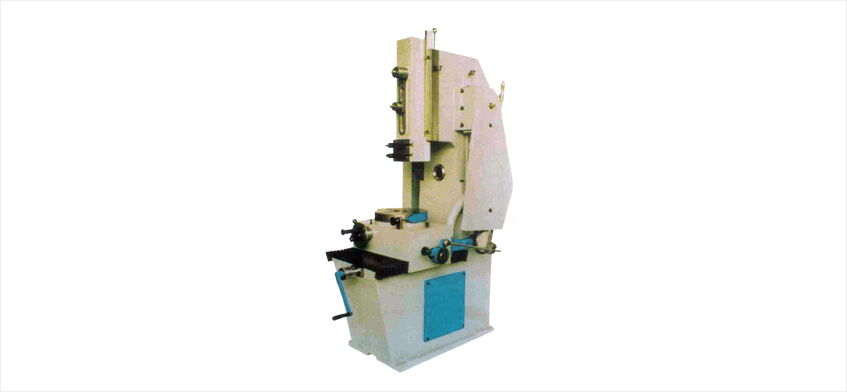

Slotting Machine with all geared and roatry auto feed

We have marked a reputed position in the market by providing a high quality range of Slotting Machine. Gun Metal Bushes are provided specially in link. Division plate is marked on dividing Head. Trust Bearings are provided in screws of slides for accuracy feeds and smooth running. They are suitable for various jobs especially Motor Parts. Scooter Parts, Dies and internal Teeth Cutting etc. Our range of slotting machine is offered on the most competitive price.

MODEL

KMT-125

KMT- 150

KMT- 200

KMT-250

KMT-305

KMT-375

KMT-450

KMT-500

Working stroke

125 mm

150mm

200mm

250mm

305mm

375mm

450mm

500mm

Length of Ram

200mm

560mm

560mm

735mm

810mm

900mm

1300mm

1300mm

Vertical adjustment of Ram

90mm

150mm

150mm

250mm

300mm

300mm

325mm

325mm

Centre of Cutting tools to col

165mm

250mm

250mm

380mm

455mm

550mm

750mm

750mm

Working surface of table

200mm

280mm

280mm

355mm

610mm

600mm

900mm

900mm

Longitudinal transverse of table

165mm

250mm

250mm

300mm

530mm

530mm

800mm

800mm

Bore of base

28mm

38mm

38mm

55mm

57mm

75mm

100mm

100mm

Transverse travel of table

215mm

250mm

250mm

300mm

455mm

500mm

600mm

600mm

Table top to ram

200mm

330mm

330mm

380mm

400mm

525mm

700mm

700mm

No of speeds

2

2

2

2

4

4

6

6

Range of speeds

90-170

60-150

60-150

46-70

20-70

20-70

20-70

20-70

Motor recommended

1 H.P

1.1/2 H.P

1.5 H.P

2 H.P

3 H.P

3 HP

5 HP

7.5 HP

R.P.M. of motor

1440 rpm

1440 rpm

1440 rpm

1440 rpm

960 rpm

960 rpm

960 rpm

960 rpm

Approx weight

350 kg

800 kg

800 kg

1100kg

1500 Kg

2000kg

4500kg

5000kg

Standard Accessories

  • Tool holder spanner
  • Motor Pulley
  • V-belt guard
  • Friction clutch

Extra Accessories

  • True chuck
  • True chuck plate
  • V belts
  • Motor
  • Starter
  • Lubrication pump
Top

Slotting Machine with all geared and roatry auto feed

We have marked a reputed position in the market by providing a high quality range of Slotting Machine. These Slotting Machine are manufactured with fine quality raw material and designed by experts. These machines find their extensive usage in several industries for perfect slotting & planning of materials. Slotting Machine with Rotary Auto Feed makes the function more effective which increases its demand in market.

Model

KMT-150 RF

KMT-250 RF

KMT-300 RF

KMT-450 RF

Length of stroke max.

175mm

250mm

325mm

475mm

Working stroke

150mm

225mm

300

450mm

Ram adjustment

125mm

200mm

250mm

325mm

Length of ram bearing

500mm

550mm

625mm

875mm

Throat adjustment

300mm

350mm

500mm

675mm

Max. diameter accommodated when machine at centre

500mm

750mm

850mm

1500mm

Height between table & head

300mm

375mm

450mm

700mm

Longitudinal feed(manual)

200mm

325mm

450mm

625mm

Longitudinal feed(Auto)

175mm

300mm

425mm

575mm

Cross feed(manual)

225mm

250mm

400mm

550mm

Cross feed (Auto)

200mm

225mm

375mm

500mm

Dimension of table

275mm

375mm

600mm

900mm

Number and range of speeds

2(30-50)

3(30-60-90)

3(25-40-65)

6(10-15-25-35-50-70)

Motor recommended

1.5HP

2 HP 960 RPM

3 HP 960 RPM

5 HP 960 RPM

Standard Accessories

  • Tool holder spanner
  • Motor Pulley
  • V-belt guard
  • Friction clutch

Extra Accessories

  • True chuck
  • True chuck plate
  • V belts
  • Motor
  • Starter
  • Lubrication pump
