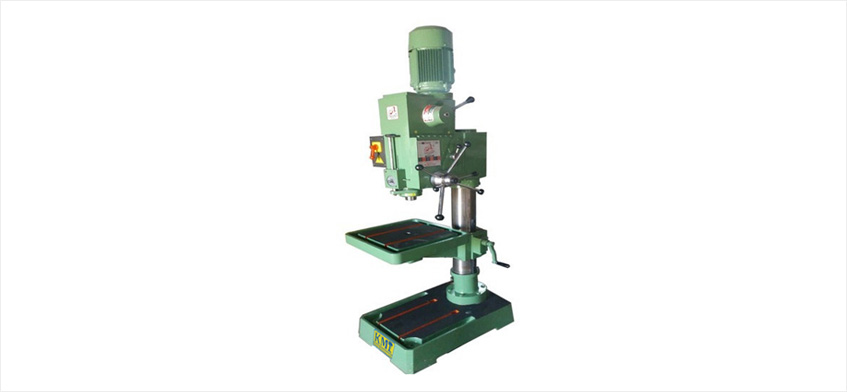

MODEL

KMT-25G

Drilling Cap.

25 mm

Pillar Diameter

88.5 mm

Spindle Nose to Table Distance

546 mm

Distance from Spindle

210 mm

Table Travel

419 mm

Taper in Spindle

MT.2

Number of Speed

8

Range of Speed (in R.P.M)

70 to 2500

Spindle Travel

140 mm

Pillar Length

1200 mm

Overall Height with Pulley Grand

1525 mm

Ram Diameter

59 mm

Table Size in Diameter

280 x 300

Base Size (Machined Area in mm)

254 x 300

Overall Base Size (in mm)

330 x 527

V-Balt Size

A-48

Motor 3 Phase

1.5 H.P

440 Volt

1440 RPM

MODEL

KMT-32G

KMT-40G

KMT-50G

Drilling Capacity in Mild Steel

32 mm

40 mm

50 mm

Maximum Drilling Radius

750 mm

1050 mm

1300 mm

Max. Distance between Spindle and Base

825 mm

1000 mm

1250 mm

Spindle Travel

175 mm

180 mm

250 mm

No. of Spindle Speeds

6

6

12

Range of Spindle Speeds RPM

90-900

90-900

45-1000

No. of Spindle Feeds

3

3

6

The range of Spindle Feeds mm/ rev.

0.1-0.4

0.1-0.4

0.12-1.25

Main Drive Motor

2 HP

3 H.P

5 H.P

Elevating Motor

1 H.P

2 H.P

3 H.P
