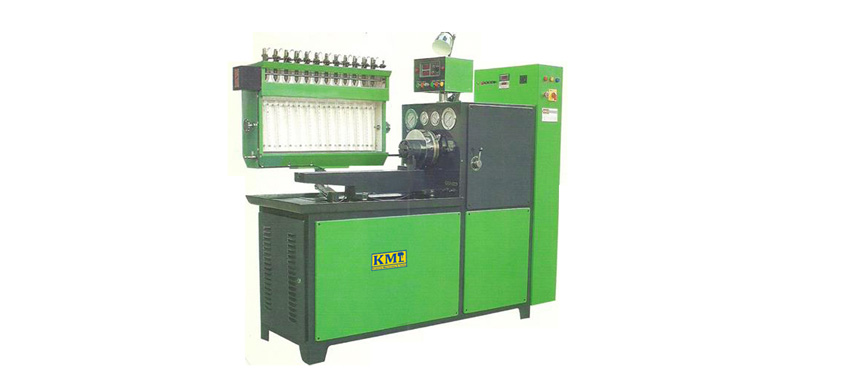

12 Cylinder Diesel Injection Pump Test Bench
Our organization is well known in the market for providing a broad assortment of 12 Cylinder Diesel Injection Pump Test Bench to our clients. These products are made using high-quality components. Keeping in mind the ever-evolving requirements of our clients, we are offering an exclusive range of Diesel Fuel Pump Test Bench. Our range of products includes AC Frequency Drive Test Bench, Belt Drive Test Bench and Hydraulic Variator Drive Test Bench.
|
MODEL |
KMT/SD-12/BSD |
KMT/SD-12/ASD |
KMT/SD-12/ASD1 |
|
Drive |
Belt Drive(Expandable Pulley System With Two Variable Belts.) |
A. C. Frequency Drive |
A. C. Frequency Drive |
|
Main Motor |
7. 5 H. P. Or 10 H. P. , 3 Phase, 415V, 50 Cycles. |
10 h. P. 3 phase, 415v, 50 cycles. |
15 h. P. 3 phase, 415v, 50 cycles. |
|
No. Of Cylinders |
12 Cylinders. |
12 cylinders |
12 cylinders |
|
Tachometer |
Electronic Digital 0-9999 R. P. M. With The Accuracy Of ±1 R. P. M. |
Electronic digital 0-9999 r. P. M. With the accuracy of ±1 r. P. M. |
Electronic digital 0-9999 r. P. M. With the accuracy of ±1 r. P. M. |
|
Stroke Counter |
100-1200 Strokes (In Steps Of 100 Strokes). |
100-1200 strokes (in steps of 100 strokes). |
100-1200 strokes (in steps of 100 strokes). |
|
Fuel Supply |
By Soundless Gear Pump. |
By soundless gear pump. |
By soundless gear pump. |
|
Fuel Pump Motor |
1 H. P. , 3 Phase, 415V, 50 Cycles. |
1 h. P. , 3 phase, 415v, 50 cycles. |
1 h. P. , 3 phase, 415v, 50 cycles. |
|
Pressure Gauge |
0-100 lbs/in2 (0-7 kg/cm2) |
0-100 lbs/in2 (0-7 kg/cm2) |
0-100 lbs/in2 (0-7 kg/cm2) |
|
0-500 lbs/in2 (0-35 kg/cm2) |
0-500 lbs/in2 (0-35 kg/cm2) |
0-500 lbs/in2 (0-35 kg/cm2) |
|
|
Speed Range & Control |
100-3000 R. P. M. In Both Directions Cw & Acw Controlled By Hand Wheel On Both Right & Left Side. |
0-200 lbs/in2 (0-14 kg/cm2) 0-30 ln/hg (0-760 mm/hg) 0-4000 r. P. M. In both directions cw & acw. |
0-200 lbs/in2 (0-14 kg/cm2) 0-30 ln/hg (0-760 mm/hg) 0-4000 r. P. M. In both directions cw & acw. |
|
Test Injectors |
12 Nos. Fitted With Calibrating Nozzle Set At A Standard Pressure. |
12 fitted with calibrating nozzle set at a standard pressure. |
12 fitted with calibrating nozzle set at a standard pressure. |
|
Phasing |
Pressure Phasing Recorded On Degree Dial. |
Pressure phasing recorded on degree dial. |
Pressure phasing recorded on degree dial. |
|
Fuel Tank |
50-55 Liter. |
50-55 liter. |
50-55 liter. |
