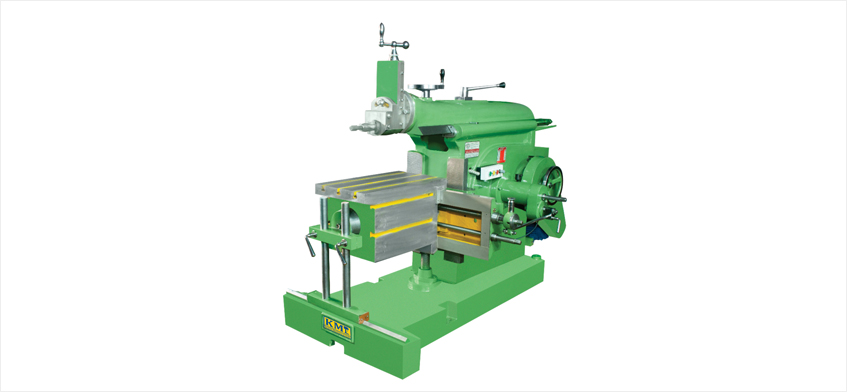

Con Pulley Shaping Machine
We are leading manufacturer and supplier of high quality shaping machine. Cone Pulley Drive Shaping Machines, offered by us, are capable of performing as per industrial standards including The close grained, C.I casting conforming to IS : 210, which ensures the long life of the machine. In order to design this machine, supreme class raw material and latest technology are used in observance with international quality standards. our shaping machines are considered ideal for shaping various metals such as steel, aluminum, ferrous & non ferrous.
|
MODELS |
KMT-18 |
KMT-24 |
KMT-30 |
KMT-36 |
KMT-42 |
|
CAPACITY |
18” |
24” |
30” |
36” |
42” |
|
Length of Ram Stroke |
457 mm |
610 mm |
762 mm |
915 mm |
1070 |
|
Length of Ram |
960 mm |
1232 mm |
1410 mm |
1651 mm |
2108 |
|
Length of Width Ram Bearing |
700 X 270 |
867 X 300 |
1020 X 330 |
1130 X 330 |
1600 X 330 |
|
Max. & Min. distance |
360 X 75 |
450 X 76 |
510 X 75 |
565 X 102 |
600 X 102 |
|
TABLE |
|||||
|
Working Surface of Table |
457 X 305 |
610 X 370 |
762 X 390 |
915 X 457 |
1078 X 533 |
|
Max. Table Travel Horizontal |
488 |
635 |
787 |
940 |
1075 |
|
Max. Table Travel Vertical |
330 |
380 |
450 |
525 |
585 |
|
Angular movement of the table on either slides |
60 L, 60 R |
60 L, 60 R |
60 L, 60 R |
60 L, 60 R |
60 L, 60 R |
|
TABLE |
|||||
|
Max. Vertical Travel of Tool Slide |
152 |
190 |
203 |
255 |
300 |
|
Max. Swivel of tool head |
60 L, 60 R |
60 L, 60 R |
60 L, 60 R |
60 L, 60 R |
60 L, 60 R |
|
SPEEDS & FEEDS |
|||||
|
Dia. of clutch pulley |
311 |
311 |
311 |
380 |
380 |
|
Range of Ram Speeds |
4 |
4 |
4 |
4 |
4 |
|
Stroke per minute |
16,32,64,96 |
14,28,42,62 |
8,16,32,48 |
10,20,30,50 |
8,16,32,48 |
|
Dia. Of motor pulley |
70 |
70 |
76 |
88 |
88 |
|
Range of table feed per stroke of Ram |
0.220 |
0.229 |
0.229 |
0-22 to 0-88 |
0-22 to 0-88 |
|
Range of tool Head Feed |
Hand feed |
Hand feed |
Hand feed |
Hand feed |
Hand feed |
|
Automatic Tool Head Feed & Tool Lifting |
On order |
On order |
On order |
On order |
On order |
|
DRIVE ELECTRICAL EQUIPMENT |
|||||
|
Power supply |
2 HP,1.5kw |
3 HP,2.25kw |
5HP,3.75kw |
7.55 HP,5kw |
10HP, 7.5kw |
|
Speed RPM |
1440 RPM |
1440 RPM |
960 RPM |
960 RPM |
960 RPM |
|
Main switch starter |
3.5 Amp |
5 AMP |
5 AMP |
5 AMP |
3.5 Amp |
Standard Accessories
- Swiveling vice.
- Automatic oil lubrication pump.
- Motor pulley
- Instruction and maintenance manual
Extra Accessories
- Electric motor
- Dol starter
- Key way cutting attachment
- Automatic tool lilting device
- Automatic feed to the tool slide
- Rapid feed system with control panel
- Allen key set. v-belts, crank handle, spanner set, screw driver oil can. tool box.
Technical Features
- Duly seasoned alloyed high duly castings
- The solidly built construction ensures vibration-free working
- Ram alignment with taper lib strip
- Automatic lubrication feature
- The shaft are made up of steel alloy
- The double jack system save the time from digging of pits
- All alignments maintained as per geometric alignment test is : 2310-1989
- The universal/fixed table is variable
- Automatically gives result on horizontal traverse.
- The tool slide is spinning 90 degrees either way
- The parts can be interchanged
- The quality of the machine is checked and ensured before delivering
- High performance and accuracy in result guaranteed.
