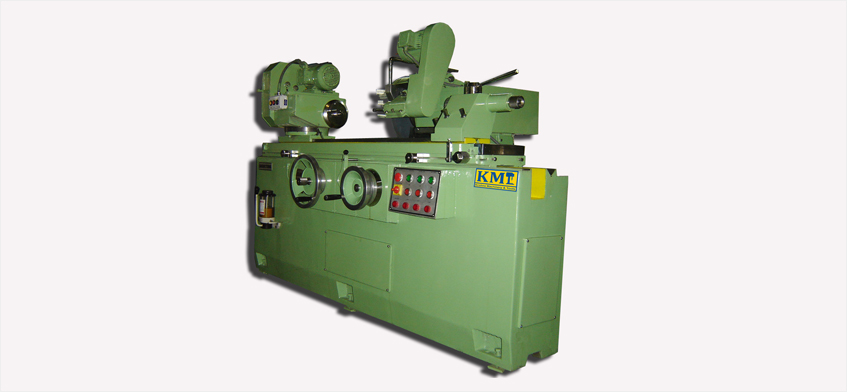

Cylindrical Grinding Machine
We are engaged in offering a wide assortment of Cylindrical Grinding Machine. The precision Universal Cylindrical Grinding Machine is carefully designed with very long time experience and extra ordinary state of art technology. It can grind both Rubber and Steel by only changing the Grinding Plate. Features of our existing range of machines.
|
MODEL |
KMT-300 C |
KMT-450 C |
KMT -600 C |
KMT-1000 C |
|
Centre distance |
300mm |
450mm |
600mm |
1000mm |
|
Centre height |
125 |
150 |
150 |
175mm |
|
Work piece max. weight |
30 |
50 |
70 |
80 |
|
Swing over table |
250 |
300 |
300 |
375 |
|
Grinding Wheel diameter, width and bore |
350x38x125 |
400x38x125 |
400x38x125 |
450x63x250 |
|
Power requirement in wheel head |
2.2 |
3.7 |
3.7 |
3.7 |
|
Power requirement in work head |
0.74 |
0.74 |
0.74 |
0.74 |
|
Fitting taper |
MT 3 |
MT 3 |
MT 3 |
MT 4 |
|
Travel of barrel |
30 |
35 |
35mm |
40 |
|
Fitting taper in tailstock |
MT 3 |
MT 3 |
MT 3 |
MT 4 |
|
Max. swivel of table, degree |
5 deg |
5 deg |
5deg |
5 deg |
|
MODEL |
KMT-1500 C |
KMT-2000 C |
KMT-2500 C |
|
Centre distance |
1250/1500 mm |
2000mm |
2500mm |
|
Centre height |
200mm |
200mm |
200mm |
|
Work piece max. weight |
100 kg |
500 kg |
700 kg |
|
Swing over table |
400mm |
400mm |
400mm |
|
Grinding Wheel diameter, width and bore |
500x50x250 |
450x63x250 |
450x63x250 |
|
Power requirement in wheel head |
5.5 Kw |
5.5kw (7.5HP) |
5.5kw(7.5HP) |
|
Power requirement in work head |
1.5 KW |
1 HP |
1 HP |
|
Fitting taper |
MT 4 |
MT-4 |
MT-4 |
|
Travel of barrel |
40mm |
40mm |
40mm |
|
Fitting taper in tailstock |
MT 4 |
MT-4 |
MT-4 |
|
Max. swivel of table, degree |
5 deg |
5 deg |
5 deg |
