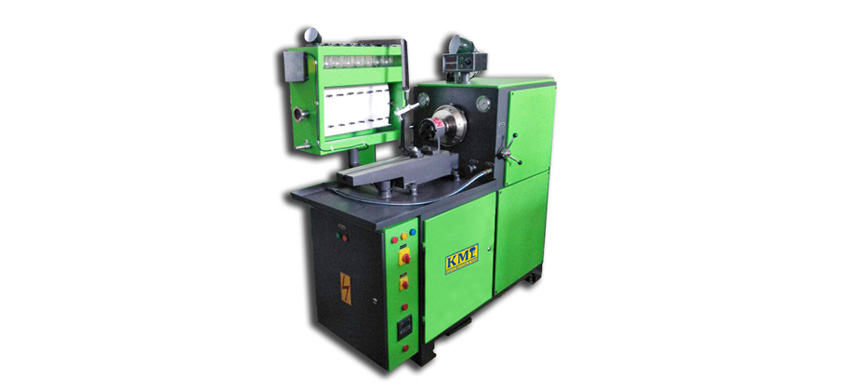

8 Cylinder Diesel Fuel Test Bench
Being one of the renowned firms in the industry, we are decidedly involved in providing a premium quality array of Diesel Fuel Pump Test Bench, we offer 8 Cylinder Diesel Fuel Injection Pump Test Benches to our highly valued clients. These machines are of superior grade and are manufactured using fine quality raw material that has been sourced from known and verified dealers. Our range of products includes AC Frequency Drive, Hydraulic Variator Drive Test Bench, Hydraulic Transmission Drive Test Bench, Belt Drive Test Bench and Belt Test Drive.
|
MODEL |
KMT/SD-8/BSD |
KMT/SD-8/VSD |
KMT/SD-8/ACD |
KMT/SD-8/ACD1 |
|
Drive |
Belt Drive (Expendable Pulley System with two variable Belts) |
Variator Drive |
A.C. Frequency Drive. |
A.C. Frequency Drive. |
|
Main Motor |
3 H.P., 3 Phase, 415V, 50 Cycles. |
5 H.P., 3 Phase, 415V, 50 Cycles. . |
5 H.P. or 7.5 H.P., 3 Phase, 415V, 50 Cycles |
5 H.P. or 7.5 H.P., 3 Phase, 415V, 50 Cycles |
|
No. Of Cylinders |
6 or 8 Cylinders. |
6 or 8 Cylinders. |
6,8 Cylinders. |
6,8 Cylinders. |
|
Tachometer |
Electronic Digital 0-9999 R.P.M. with the accuracy of ±1 R.P.M. |
Electronic Digital 0-9999 R.P.M. with the accuracy of ±1 R.P.M. |
Electronic Digital 0-9999 R.P.M. with the accuracy of +- 1R.P.M |
Electronic Digital 0-9999 R.P.M. with the accuracy of +- 1R.P.M |
|
Stroke Counter |
100-1200 Strokes (in steps of 100 strokes). |
100-1200 Strokes (in steps of 100 strokes). |
100-1200 Strokes (in steps of 100 strokes.) |
100-1200 Strokes (in steps of 100 strokes.) |
|
Fuel Supply |
By soundless gear pump. |
By soundless gear pump. |
By soundless gear pump |
By soundless gear pump |
|
Fuel Pump Motor |
1 H.P., 3 Phase, 415V, 50 Cycles. |
1 H.P., 3 Phase, 415V, 50 Cycles. |
1.H.P., 3 Phase, 415V, 50 Cycles. |
1.H.P., 3 Phase, 415V, 50 Cycles. |
|
Pressure Gauge |
0-100 lbs/in2 (0-7 kg/cm2) |
0-100 lbs/in2 (0-7 kg/cm2) |
0-100 lbs/in (0-7 kg/cm), |
0-100 lbs/in (0-7 kg/cm), |
|
0-500 lbs/in2 (0-35 kg/cm2). |
0-500 lbs/in2 (0-35 kg/cm2). |
0-500 lbs/in (0-35 kg/cm), |
0-500 lbs/in (0-35 kg/cm), |
|
|
Speed Range & Control |
100-3000 R.P.M. in both Directions CW & ACW controlled by hand wheel on both right & left side. |
Infinitely variable in both direction by Variator drive. Intermediate two speed gear box with neutral position, Speed range from 80 to 900 R.P.M. - 300 to 3200 R.P.M. |
0-200 lbs/in (0-14 kg/cm) and 0-30 In/Hg (0-760mm/Hg). 0-4000 R.P.M in both Directions CW & ACW. |
0-200 lbs/in (0-14 kg/cm) and 0-30 In/Hg (0-760mm/Hg). 0-4000 R.P.M in both Directions CW & ACW. |
|
Test Injectors |
6 or 8 Nos. Fitted with Calibrating Nozzle set at a standard pressure. |
6 or 8 Nos. Fitted with Calibrating Nozzle set at a standard pressure. |
6 or 8 Nos. Fitted with Calibrating Nozzle set at a standard pressure. |
6 or 8 Nos. Fitted with Calibrating Nozzle set at a standard pressure. |
|
Phasing |
Pressure phasing recorded on degree dial. |
Pressure phasing recorded on degree dial. |
Pressure Phasing recorded on degree dial. |
Pressure Phasing recorded on degree dial. |
|
Fuel Tank |
45-50 Liter. |
45-50 Liter. |
45-50 Liter |
45-50 Liter |
