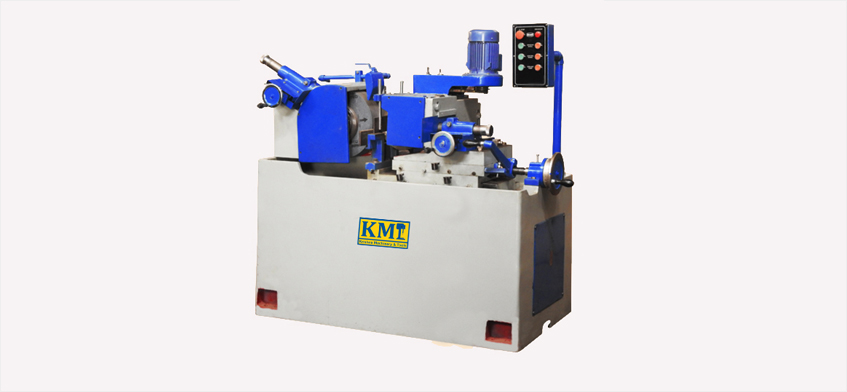

Centreless Grinder Machine
We hold expertise in offering a comprehensive range of Center less Grinding Machines, which is specially designed to serve the purpose of through feed and in-feed grinding. These machines are well known for their long working life, durability, high performance & efficiency. These are available with us in various range including through-feed and plunge grinding. Our Center less Grinding Machines is innovative design, high rigidity, high accuracy, high efficiency, guaranteed quality.
|
MODEL |
KMT-No.2 |
KMT-No.3 |
KMT-No.4 |
|
Maximum grinding diameter |
75mm |
100mm |
125mm |
|
Minimum grinding diameter |
3mm |
6mm |
6mm |
|
GRINDING WHEEL |
|||
|
Diameter X width X ore(mm) |
350x100x127 |
350x150x127 |
500x150x305 |
|
Speed (RPM) |
1800/2050 |
1800/2050 |
1250 |
|
Electric motor |
7.5 HP |
10 HP |
15 HP |
|
REGULATING WHEEL |
|||
|
Diameter X width X ore(mm) |
230x100X76.2 |
230x150x76.2 |
300x150x127 |
|
No of speeds |
3 |
3 |
3 |
|
Electric motor |
1 HP |
1 HP |
2 HP |
Standard Accossories
- Hydraulic dressing system for both wheels
- Oil lubrication system for Slides
- Grinding Wheel fitted on flange
- Standard work rest blade 1 Pc
- Two Truing Devices
- Dressing Holders with Diamond Dressers for Grinding & Regulating Wheels
- Splash Guard
- Tool Kit
- Instruction Manual
- Spanner for the Nut of Grinding Wheel & Regulating Wheel
Salient Features
- High Grade Casting to Ensure Long Life
- Designed for Both Through Feed and In feed Grinding
- Ultra Precision Bearing are used for Supporting Both Heads
- Grinding Wheel Duly Balanced
- Lubrication Pump Provide for Adequate Lubrication of Slides
- High Accuracy and Excellent Surface Finish on Work Piece
