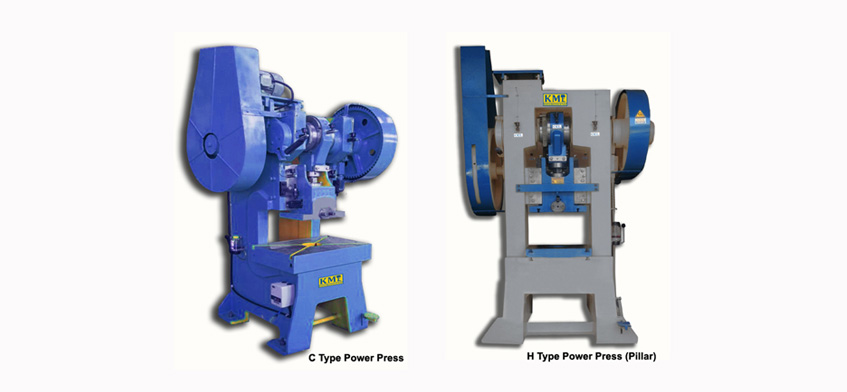

Mechanical Press Machines
KMT make Power Press machines are manufactured under the most favorable and modern manufacturing conditions under the supervision of dedicated, qualified & experienced group of Professionals to produce highly rugged and reliable machines. The frame of our Power Press machines are manufactured from high quality rolled plates. In order to manufacture this machine, we use the most advanced technology as per the set industry norms. The offered machine can be installed easily and has user friendly.
SPECIFICATION OF C FRAME POWER PRESS
|
MODEL |
KMT-5 C |
KMT-10 C |
KMT-20 C |
KMT-30 C |
KMT-50 C |
|
Bed Size |
280 x 355mm |
310 x 435mm |
355 x 565mm |
410 x 615mm |
510 x 720mm |
|
Bed to Ram |
180mm |
230mm |
270mm |
310mm |
335mm |
|
Bolster Thickness |
58mm |
58mm |
63mm |
63mm |
70mm |
|
Crank Shaft Dia |
65mm |
75mm |
85mm |
100mm |
120mm |
|
Stroke Length |
45mm |
52mm |
63mm |
83mm |
95mm |
|
Gear Dia |
355mm |
455mm |
560mm |
610mm |
660mm |
|
Fly Wheel Dia |
425mm |
490mm |
620mm |
680mm |
735mm |
|
Punch Bore |
25 |
25 |
28 |
32 |
39 |
|
Floor to Top of Bed |
800mm |
800mm |
800mm |
800mm |
800mm |
|
Strokes/Minute |
70 |
70 |
65 |
60 |
60 |
|
Power Required HP/RPM |
1/1440 |
1.5/1440 |
2/1440 |
3/1440 |
5/1440 |
|
MODEL |
KMT-75 C |
KMT-100 C |
KMT-150 C |
KMT-200 C |
|
|
Bed Size |
565 x 820mm |
640 x910mm |
720 x970mm |
765 x1100mm |
|
|
Bed to Ram |
385mm |
455mm |
565mm |
600mm |
|
|
Bolster Thickness |
78mm |
83mm |
90mm |
102mm |
|
|
Crank Shaft Dia |
135mm |
170mm |
185mm |
204mm |
|
|
Stroke Length |
110mm |
115mm |
127mm |
140mm |
|
|
Gear Dia |
760mm |
910mm |
1015mm |
1220mm |
|
|
Fly Wheel Dia |
840mm |
910mm |
1065mm |
1150mm |
|
|
Punch Bore |
45mm |
51mm |
56mm |
63mm |
|
|
Floor to Top of Bed |
800mm |
800mm |
800mm |
800mm |
|
|
Strokes/Minute |
55 |
55 |
50 |
45 |
|
|
Power Required HP/RPM |
7.5/1440 |
10/1440 |
15/1440 |
20/1440 |
SPECIFICATION OF PILLAR TYPE /H FRAME POWER PRESS
|
Model |
KMT-10 H |
KMT-20 H |
KMT-30 H |
KMT-50 H |
KMT-75H |
KMT-100H |
|
Bed size |
306x355mm |
355x410mm |
410x460mm |
460x510mm |
522x575mm |
586x640mm |
|
Bed to ram |
230mm |
270mm |
310mm |
335mm |
385mm |
455mm |
|
Bolster thickness |
57mm |
63mm |
63mm |
70mm |
78mm |
83mm |
|
Crankshaft dia |
75mm |
85mm |
100mm |
120mm |
135mm |
170mm |
|
Stroke length |
52mm |
63mm |
83mm |
95mm |
110mm |
115mm |
|
Gear dia |
455mm |
560mm |
610mm |
660mm |
760mm |
910mm |
|
Fly wheel dia |
535mm |
665mm |
765mm |
841mm |
920mm |
1070mm |
|
Punch bore |
25mm |
28mm |
32mm |
38mm |
45mm |
51mm |
|
Floor to top of bed |
800mm |
800mm |
800mm |
800mm |
800mm |
800mm |
|
No of stroke in minute |
70 |
65 |
60 |
60 |
55 |
55 |
|
Motor power reqd in HP/rpm |
1.5/1440 |
2/1440 |
3/1440 |
5/1440 |
7.5/1440 |
10/1440 |
|
Model |
KMT-150H |
KMT-200H |
KMT-250H |
KMT-300H |
KMT-400 |
|
|
Bed size |
640x690mm |
765x820mm |
865x920mm |
915x915mm |
1000x1000mm |
|
|
Bed to ram |
565mm |
600mm |
612mm |
765mm |
815mm |
|
|
Bolster thickness |
90mm |
102mm |
108mm |
120mm |
125mm |
|
|
Crankshaft dia |
185mm |
204mm |
230mm |
254mm |
286mm |
|
|
Stroke length |
127mm |
140mm |
152mm |
178mm |
210mm |
|
|
Gear dia |
1015mm |
1220mm |
1270mm |
1320mm |
1420mm |
|
|
Fly wheel dia |
1148mm |
1275mm |
1326mm |
1370mm |
1475mm |
|
|
Punch bore |
56mm |
63mm |
63mm |
70mm |
75mm |
|
|
Floor to top of bed |
800mm |
800mm |
800mm |
800mm |
800mm |
|
|
No of stroke in minute |
50 |
45 |
45 |
45 |
40 |
|
|
Motor power reqd in HP/rpm |
15/1440 |
20/1440 |
25/1440 |
30/1440 |
40/1440 |
