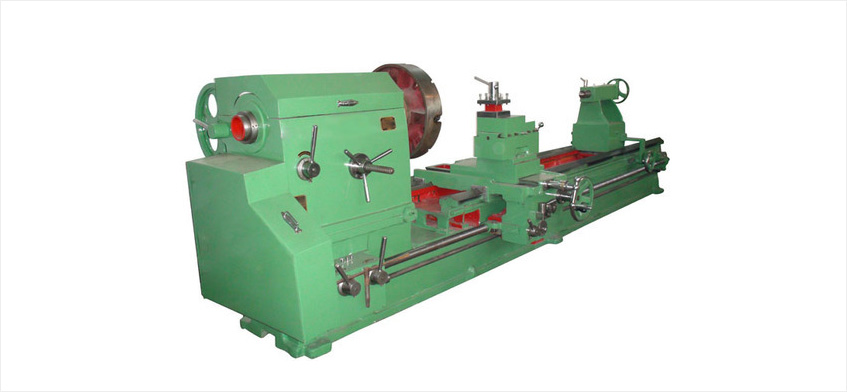

V Belt Driven Lathe Machine
We offer V Belt Driven Lathe Machines, which are extensively used in wide range of industrial applications. Further, designed flawlessly and built to tight tolerances our Lathe Machines are compact in size and offer value for money. Additionally, the machines feature simplicity and robustness. Further, the lathe machine offered by us comes with effective post sales service that assists clients in maintenance and trouble shooting. We offer these machines at very affordable price
|
MODEL |
KMT-01 |
KMT-02 |
KMT-03 |
KMT-04 |
KMT-05 |
KMT-06 |
KMT-07 |
|
Length of bed |
6ft |
6.1/2’ |
8ft |
10ft |
10ft |
12ft |
12ft |
|
Width of bed |
330mm |
356mm |
406mm |
457mm |
508mm |
508mm |
559mm |
|
Height of centre |
254mm |
305mm |
356mm |
406mm |
457mm |
457mm |
508mm |
|
Spindle bore |
54mm |
76mm |
79mm |
105mm |
105mm |
114mm |
114mm |
|
No of spindle speeds |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
Morse taper |
3 |
4 |
4 |
4 |
5 |
5 |
5 |
|
Admit between centres |
1000mm |
1092mm |
1499mm |
1778mm |
1778mm |
2286mm |
2286mm |
|
Swing over saddle |
356mm |
483mm |
559mm |
610mm |
711mm |
711mm |
711mm |
|
Swing in gap |
699mm |
889mm |
1066.8mm |
1270mm |
1372mm |
1372mm |
1575mm |
|
Length of gap in front of face plate |
229mm |
279mm |
381mm |
254mm |
279mm |
305mm |
305mm |
|
Lead screw pitch TPI |
2/4 |
2/4 |
2/4 |
2/4 |
2/4 |
2/4 |
2/4 |
|
Motor reqd. |
2HP |
2HP |
5HP |
5HP |
5HP |
7.5HP |
7.5HP |
