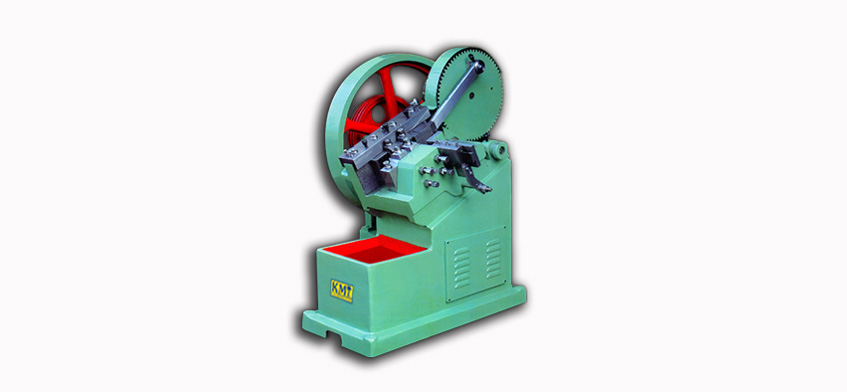

Flat Die Thread Rolling Machine
We are manufacturer and supplier of Flat Die & Thread Rolling Machines. These machines are Developed and designed by the leading experts of the industry. We have been providing quality machines to our client’s at the most reasonable prices.
|
MODEL |
KMT- 01-F |
KMT-02-F |
KMT-03-F |
KMT-04-F |
KMT-05-F |
KMT-06-F |
KMT-07-F |
|
Min. Max. Dia Can Be Rolled |
1/16″ 1/4″ |
1/8″-1/2″ |
1/8″-1/2″ |
1/4″-5/8″ |
1/4″-3/4″ |
1/4″-7/8″ |
3/8″-1″ |
|
Maximum Length of thread |
2″ |
21/2″ |
3″ |
3″ |
4″ |
4″ |
4″ |
|
Dimension of Fixed die |
3″X2″X1″ |
5″X21/2X1″ |
5″X3″X1″ |
6″X3″X1″ |
6″X4″X1″ |
7″X4″X1″ |
8″X4″X11/2″ |
|
Dimension of moving die |
4″X2″X1″ |
6″X21/2″X1″ |
6″X3″X1″ |
7″X3″X1″ |
7″X4″X1″ |
8″X4″X1″ |
9″X4″X11/2″ |
|
Production In Pieces per minute |
80 |
60 |
60 |
50 |
30 |
30 |
20 |
|
Power |
2 |
3 |
5 |
7.5 |
10 |
15 |
20 |
Features
- Simple in operation
- Low maintenance
- High efficiency
- Trouble free operation
