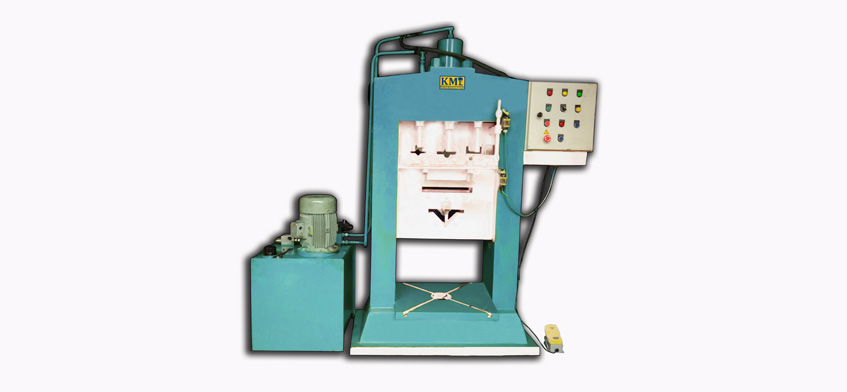

Iron Worker Machines
We are manufacturer of Multipurpose Iron Worker suitable to shear various profiles like channel, angle, flats, rounds etc and suitable for punching and corner notching. which is fabricated using the latest technology machines and excellent quality raw material. These machines are highly efficient and have some optional features like manual back gauge, hydraulic oil first fill, blades for round bar, square and “I section cutting and a high speed system. Further, we provide these machines with various standard and optional accessories as required by clients.
|
MODEL |
KMT-30-I |
KMT-35-I |
KMT-55-I |
KMT-80-I |
KMT-110-I |
|
Capacity |
30 Ton |
35 Ton |
55 Ton |
80 Ton |
110 Ton |
|
Channel / I Bim Shear |
– |
100 x 50 |
100 x 50 |
150 x 75 |
200 x 100 |
|
Angle Shear |
50 x 50 x 06 |
100 x 100 x 08 |
100 x 100 x 08 |
100 x 100 x 10 |
130 x 130 x 12 |
|
Round / Square Shear |
Ø20 x 20 x 20 |
Ø38 x 38 x 38 |
Ø38 x 38 x 38 |
Ø45 x 45 x 45 |
Ø60 x 60 x 60 |
|
Flat Bar Shear |
150 x 05 |
300 x 12 |
300 x 12 |
430 x 12 |
530 x 18 |
|
Punching |
– |
– |
Ø40 x 06 |
Ø50 x 06 |
Ø50 x 06 |
|
Notching / V – Notching |
50* V-Notching |
– |
50 x 40 x 05 |
60 x 40 x 06 |
80 x 60 x 06 |
|
Electric Power (HP) |
3 / 1440 |
5 / 1440 |
5 / 1440 |
7.5 / 1440 |
15 / 1440 |
Optional Accessories
- Blade for Round Bar, Square Bar Cutting, ‘I’ – Bim, Section Cutting
- Any Type of Punching Notching & Bending Die
- First Fill of Hydraulic Oil
- Main Back Gauge
Standard Accessories
- Blade for Angle Cutting, Channel Cutting (any one size), Flat Cutting & Notching
- Fine Stroke Adjustment Road with Limit Switch
- Hydraulic / Manual Job Clamping Device
- Electric Control Panel
- Pair of Foot Switch
- Main Drive Motor
