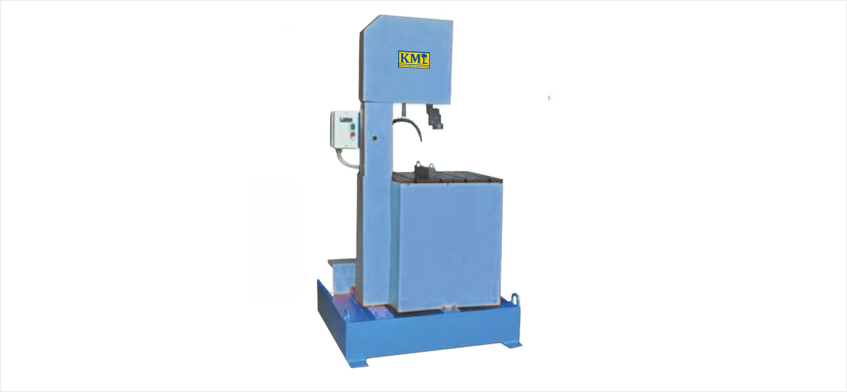

Vertical Band Saw Machine
We are one of the leading manufacturer and supplier of Vertical Band Saw Machine . Our Clients can avail from us best quality Vertical Band Saw Machines that are suitable for all types of cutting needs. It also can cut various types of materials like mild steel, alloy steel, stainless steel. Brass copper, aluminium.It is precious & ease feed control. You can get fast & smooth cutting.
| Technical Data | KMT-150-VBM | KMT-250-VBM | KMT-300-VBM |
|---|---|---|---|
| Maximum Work Thickness In Mm | 150mm | 250mm | 300mm |
| Throat (Blade To Column) In Mm | 250mm | 300mm | 350mm |
| Main Drive Hp, 1440 Rpm | 3 H.P | 3 H.P | 5 H.P |
| Table Size in Mm | 500x500 | 600x600 | 700x700 |
| Work Table Operation | Manual | Manual | Manual |
| Blade Tension | Manual | Manual | Manual |
| Blade Speed (Mtr/Min) | 20-100 | 25-150 | 15-1000 |
| No. of band wheels | 2 | 2 | 2 |
| Blade Size in Mm | 3000X27X0.9 | 3760X27X0.9 | 4100X34X1.1 |
| Coolant Motor Hp, 1440 Rpm | 0.14 HP | 0.14 HP | 0.14 HP |
| Floor Space Size (Lxwxh) In Mm | 1000X1000X1610 | 1000X1000X1610 | 1000X1000X1610 |
| Net Weight In Approx Kg | 550 | 1100 | 1850 |
Special Features
- Fully welded, heavy duty structure ,vibration Free construction
- Adjustable cutting feed( optional)
- Improved blade guide mechanism with carbide & bearings
- Less tooling cost due to higher blade life
- less power consumption due to continuous Cutting
- Good parallelism in cutting due to adjustable Blade Guide
