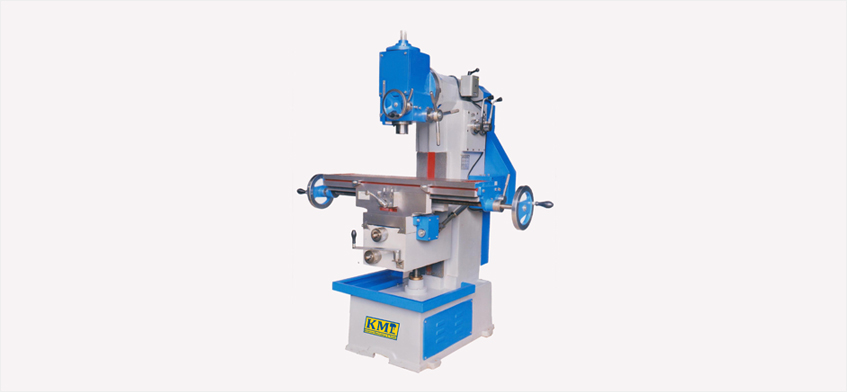

Vertical Milling Machine
We are engaged manufacturing and supplying of wide range of Vertical Milling Machine. Our machine is manufactured using premium grade base material, components and advanced technologies that make the durable and reliable in nature. All our vertical milling machines are known for their high reliability, easy operation, and low maintenance. Our Vertical Milling Machine are available in various dimensions, sizes, and shapes as per the choices of our clients.
|
MODEL |
KMT-1V |
KMT- 1½V |
KMT -2V |
KMT-3V |
|
Face of body |
228mm |
250 mm |
279mm |
304mm |
|
Surface of table |
1016x228mm |
1200 x 250 mm |
1320x279mm |
1422x304mm |
|
No of Tee Slots |
3 |
3 |
3 |
3 |
|
Size of T Slots |
12mm |
12mm |
16mm |
16mm |
|
Swivel either side of center line |
45deg |
45 deg |
45 deg |
45deg |
|
Cross feed |
125mm |
200 mm |
254mm |
304mm |
|
Vertical traverse |
330mm |
400 mm |
558mm |
660mm |
|
Longitudinal traverse |
457mm |
525 mm |
635mm |
711mm |
|
Taper of spindle |
ISO 40 |
ISO 40 |
ISO40 |
ISO40 |
|
No of spindle speed |
6 |
9 |
9 |
9 |
|
Range of spindle(RPM) |
45 to 550 |
40 to 675 |
40 to 675 |
40 to 675 |
|
No of longitudinal feeds |
3 |
3 |
3 |
3 |
|
Motor cap |
2 HP |
2 HP |
3 HP |
5 HP |
|
Coolant pump cap. |
0.1 HP |
0.1 HP |
0.1 Hp |
0.1 Hp |
