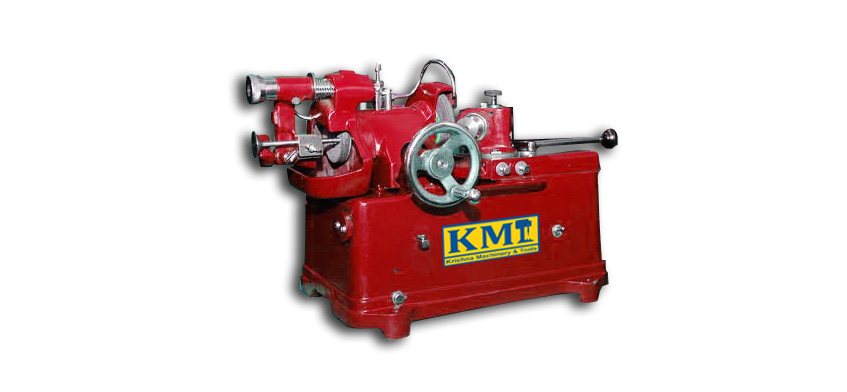

Valve Refacer Machine
We are highly acclaimed in this industry for providing an optimum quality range of Valve Refacer. With advanced manufacturing techniques, we manufacture, supply and export Valve Refacer Machine. These machines are fabricated by making use of robust material and latest production methods.
|
MODEL |
KMT-14V |
|
Valve stem capacity |
6mm to 14mm |
|
Valve angle adjustment range |
0 deg to 90deg |
|
Valve head capacity |
Up to 90mm |
|
Grinding wheel size |
5” X ½” X 5/8” |
|
Butt grinding wheel |
4” X ¾” X 5/8” |
|
Grinding wheel spindle |
4000 rpm |
|
Work head spindle |
175rpm |
|
Power required |
0.5 Hp 200/220 volt, A.C. |
|
SPARE PARTS |
|
|
Collets ¼” to 9/16” |
2 Nos |
|
Diamond dresser |
1 No |
|
C-spanner |
1 each |
Features
- Smooth working with 100% efficiency. Slides have set-in springs to maximum rigidity. Provides grinding from 00 to 900
- Precision built, under stringent quality control measures.
- Produces mirror proff finish without chatter marks.
- Easy to handle, eliminates time-consuming operations of lapping etc.
- Common drive with one motor for grinding wheel, valve spindle and coolant pump.
- Centrifugal pump provides constant water supply for better finish.
- Well protected against in-gress, dirt, dust and coolant
