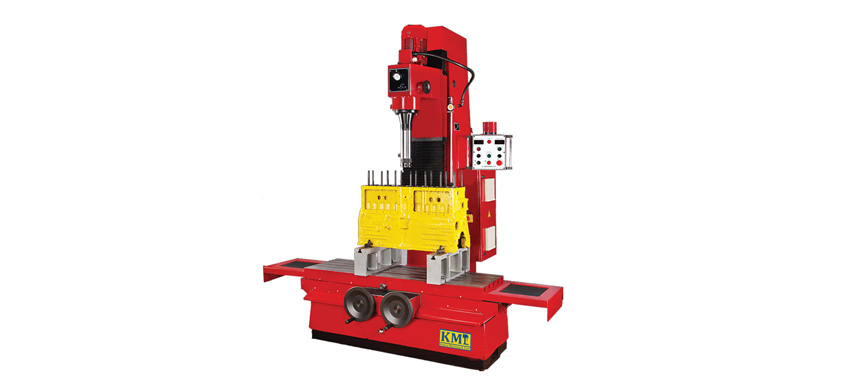

Fine Boring Machine

Home Automobile and Garage Machines Fine Boring Machine

MODEL	KMT – 1200FB	KMT – 1500FB	KMT – 2200FB	KMT – 2500FB
Boring capacity	62 – 135 mm	48 – 220 mm	62 – 265 mm	62 – 265 mm
Boring capacity with extra spindle	38 – 190 mm	38 – 310 mm	38 -350 mm
Milling length	1250 mm	1350 mm	1800 mm	2300 mm
Milling width	350 mm	350 mm	400 mm	400 mm
Maximum boring head travel	600 mm	700 mm	850 mm	850 mm
Maximum distance head to table	1300mm	1340 mm	1500 mm	1500 mm
Maximum distance between outer cylinder center	900 mm	1200 mm	1800 mm	2500 mm
Max work piece on table	750 kg	1000 kg	2500 kg
Spindle speed motor	1.5kw / 2hp	1.5 kw / 2 hp	2.2 kw / 3 hp	2.2 kw/3 hp
Motor rapid & feed	0.37 kw / 0.5hp	0.37 kw / 0.5 hp	4kw servo motor
Motor table traverse longitudinal	0.37 kw / 0.5hp	0.37 kw / 0.5 hp	0.37 kw / 0.5hp
Spindle speeds	50 to 750 rpm	50 to 750 rpm	50 to 750 rpm	50 to 750 rpm
Spindle feeds	12 – 100mm / min	12 – 100 mm / min	10 to 100 mm/min
Maximum distance from spindle centre to column	360 mm (14.17″)	410 mm	500 mm	500 mm
Working table size (l x w)	1200 x 360mm	1500 x 450 mm	2200 mm x 600 mm	2500 mm x 600 mm
Table traverse – longitudinal	1300mm	1850 mm	2050 mm	2700 mm
Table traverse – cross wise	75 mm	120 mm	150 mm	150 mm
Length of the machine	2200mm	2800 mm	3300 mm	3300 mm
Width of the machine	1300 mm	1440 mm	1800 mm	1800 mm
Height of the machine	2440 mm	2525 mm	3050 mm	3050 mm
Work space required ( l x w)	2880 x 1400 mm	4050 x 1520 mm	4400 x 1850 mm	4500 x 1850 mm

Base, Cross Slide, Table, Column and boring slide (gear box) are of fine-graded, alloy casting.
Stress relief after rough machine ensures rugged and vibration free operation of the machine.
Boring slide setting with tapered gibes to avoid vibration and achieve better boring accuracy.
Auto stop spindle rotation and rapid return of boring head after completion of boring operation.
Anti-friction wear resistant lines provided on all sliding surfaces of the boring slide to minimize wear and tear.
