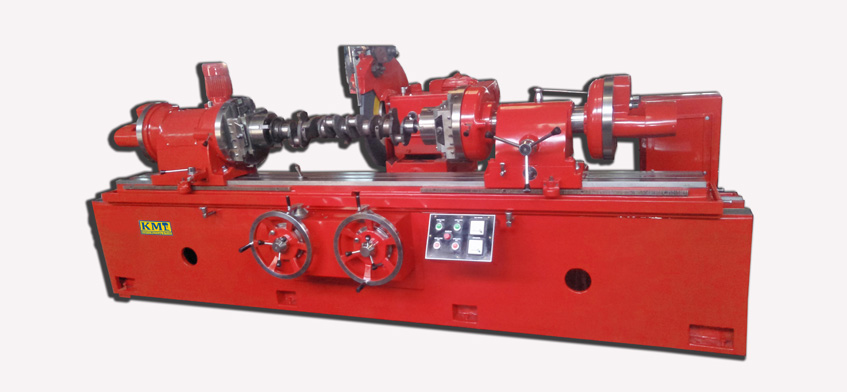

Crankshaft Regrinding Machine
We are affianced in providing our clients with a distinct assortment of Crank shaft grinding with new technologies. While adopting latest technology and using quality raw material, we are continuously engaged in the supplying and exporting of a wide range of crank shaft grinding machines. These Grinding machines are manufactured with the help of well tested components and modish technology. Clients can avail this machine from us in several technical specifications and at industry leading prices
|
MODEL |
KMT-48 |
KMT-60 |
KMT-72 |
KMT-84 |
KMT-90 |
KMT-104 |
KMT-120 |
|
Size in inches |
48” |
60” |
72” |
84” |
90” |
104’’ |
120’’ |
|
Max. distance between centers |
1200 mm |
1500mm |
1800mm |
2100mm |
2250 mm |
2600 mm |
3000 mm |
|
Max. distance between chucks |
1100 mm |
1400mm |
1700mm |
2000mm |
2150mm |
2500 mm |
2900 mm |
|
Max. weight of crankshaft |
60kg |
80kg |
100kg |
125kg |
150kg |
200kg |
300kg |
|
Swing over table |
400mm |
500mm |
500mm |
650mm |
650mm |
650mm |
650mm |
|
Max. stroke |
175mm |
225mm |
225mm |
280mm |
280mm |
280mm |
280mm |
|
Work head spindle speeds |
27-41-61 rpm |
27-41-61 rpm |
27-41-61 rpm |
27-41-61 rpm |
27-41-61rpm |
18-27-41rpm |
18-27-41 rpm |
|
Grinding wheel speed |
950rpm |
950rpm |
950rpm |
750rpm |
750rpm |
750rpm |
725 rpm |
|
Grinding space reqd |
4500x 2500 mm |
5400x 2800mm |
6000x 2800mm |
6500x 3250mm |
7150x 3250 mm |
7500x 3250 mm |
9000x 2400 Mm |
Standard Equipment
The machine is fitted with complete electrical installation with motors for work head, wheel head and coolant pump.
- Crank centering v-gauge with dial gauge-1
- Setting up system comprising of two off-set heads with universal chucks-1
- Steady rest -2
- Wheel dresser for faced, side & radius dressing-1
- Diamond tipped dressing tool-1
- Grinding wheel with hub-1
- Grinding wheel balancing stand with arbor-1
- Coolant tank-1
- Set balance weigts-1
- Set of splash guads-1
- Set of tool, spanners, Allen keys, oil cane etc.-1
- Operating manual-1
